| Specification | Details |

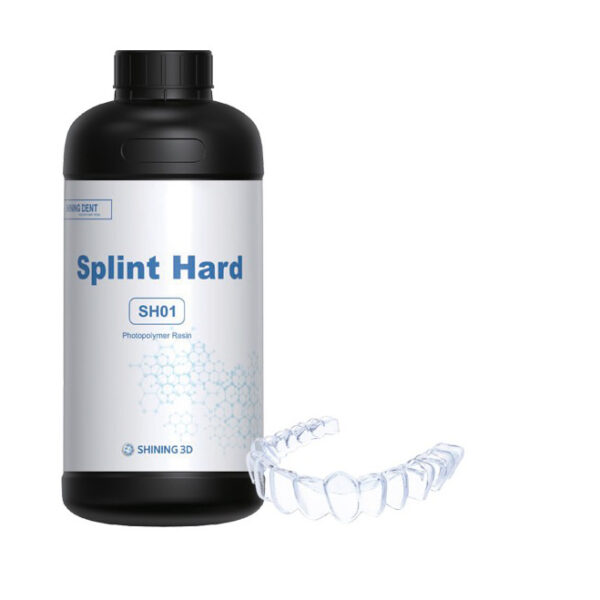

| Product name | SHINING DENT Hard Occlusal Splint Resin SH01 |
| Product code | SH01 |
| Material type | Biocompatible rigid splint photopolymer resin |
| Primary applications | Hard occlusal splints, rigid night guards, bite splints |
| Intraoral use | Occlusal splint appliance after proper processing |
| Color | Transparent / clear |
| Bottle size | 1 kg |
| Typical output | Approx. 62–66 splints per 1 kg |
| AccuFab-F1 print time | Approx. 67 min |
| Post-cure profile | FabCure N2: 6 min at 60°C |
| Key properties | High strength, controlled shrinkage, fracture resistance, transparent finish |
| Property | Value |
|---|---|
| Colour | Transparent |
| Viscosity | 1050 |
| Wavelength | 405nm |
| Property | Value | Test Method |
|---|---|---|
| Ultimate Flexural Strength | > 50 MPa | ISO 20795-2 |
| Flexural Modulus | > 1500 MPa | ISO 20795-3 |
| Elongation at Break | > 20% | ISO 527 |
| Fracture Work | > 6000 J/m² | ISO 20795-1 |
| Maximum Stress Intensity | > 3.9 MPa m1/2 | ISO 20795-1 |
| Maximum Stress Intensity after Three Months of Accelerated Aging Tests | > 3.9 MPa | ASTM F1980-2021, ISO 527 |
| Process | Value |
|---|---|
| Cleaning Time with 95% Ethanol | Manual Cleaning 20 secs |
| Recommended Curing Time | Fabcure 1/1S: 10 min | Fabcure 2: 5 min |
SHINING 3D Hard Occlusal Splint Resin SH01 is a dental resin for printing rigid occlusal appliances such as hard splints and night guards. It is designed to provide strength, dimensional stability, and reliable fit for functional dental splint applications.
SH01 is suitable for cases where a firm appliance is preferred for occlusal protection or stabilization. After proper post-processing, it delivers a transparent appliance with durability for routine clinical use.
SS01 should be stored at room temperature (23±2°C) in a retainer storage box for optimal preservation.
Splint Hard is an excellent option for printing rigid occlusal splints, offering optimal elongation, high flexural strength, and low water absorption. This material is TPO-free, tasteless, and free from MMA & THF-MA, making it a safer choice, especially for sensitive users.
SH01 has undergone real-aging performance testing in oral devices and features exceptional shrinkage control and high precision, ensuring long-term durability. With the HyperClear system, it provides outstanding transparency for occlusal splint applications. Additionally, printed splints require minimal polishing in supported areas.
For best storage, SS01 should be kept at room temperature (23±2°C) in a retainer storage box.
-TPO-free
-MMA & THF-MA free
-Minimal polish using HyperClear system
-Transparent, high flexural strength, optimum elongation
