Dental equipment supplier in Canada
1,400.00$
| Specification | FabCure 2 |
| Product Type | Dental post-curing unit |
| Dimensions | 290 × 290 × 367.5 mm |
| Weight | 10.5 kg |
| Curing Volume | Φ210 mm × H180 mm |
| Operating Temperature | 10–30°C |
| Maximum Curing Temperature | 60°C |
| Light Source | UV LED |
| Wavelength | 385–405 nm |
| LED Power | 70W |
| Power | AC 100–240V, 150W |
| Interface | Wi-Fi |
| Display / Control | OLED screen with control knob |
| Curing Method | Multi-surface UV curing with chamber heating |
| Resin Profile Support | SHINING 3D preset profiles, custom settings, wireless updates |
| Best For | Dental models, guides, splints, restorations, appliances, and resin post-curing workflows |
The SHINING 3D FabCure 2 is a high-performance post-curing device built for modern dental 3D printing workflows. After printing and washing, proper post-curing is essential to help resin parts achieve their intended strength, stability, accuracy, and material performance. FabCure 2 is designed to make this step faster, more consistent, and easier to control.
Equipped with 30 multi-directional LEDs, FabCure 2 delivers UV light from the sides and bottom of the curing chamber. This multi-surface light distribution helps UV energy reach different areas of the printed part more evenly, supporting complete and consistent curing across complex dental geometries. SHINING 3D states that its 70W LED system enables a powerful curing cycle capable of curing printed objects within minutes.
In addition to UV light, FabCure 2 uses an efficient ceramic heating module with multiple temperature sensors. The chamber can heat rapidly up to 60°C, helping improve the mechanical and flexural properties of printed resin parts. This controlled heating environment supports more reliable curing performance, especially for dental materials that require specific post-curing conditions.
FabCure 2 also includes optimized curing parameters for SHINING 3D resins and supports custom curing settings for special requirements. Through Wi-Fi connectivity, the unit can receive wireless updates for resin profiles, firmware, and curing configurations, helping keep the device aligned with the latest material recommendations.
With its larger curing volume of Φ210 mm × H180 mm, FabCure 2 can accommodate a wide range of dental parts and models. Its OLED screen and practical control knob make operation simple and intuitive, allowing dental professionals to select curing programs, adjust parameters, and manage curing cycles with ease.
| Feature | Benefit |
| Multi-Surface UV Curing | UV light is delivered from the sides and bottom for more complete curing coverage |
| 30 Multi-Directional LEDs | Provides consistent exposure across complex printed parts |
| 70W LED Power | Supports fast and efficient curing cycles |
| 385–405 nm Wavelength Range | Suitable for a wide range of dental resin materials |
| Rapid Chamber Heating | Ceramic heating module heats the chamber up to 60°C |
| Multiple Temperature Sensors | Helps maintain a controlled curing environment |
| Large Curing Volume | Φ210 mm × H180 mm capacity supports larger models and dental appliances |
| Preset Resin Profiles | Includes optimized curing parameters for SHINING 3D resins |
| Custom Curing Settings | Allows users to create custom time and temperature settings |
| Smart Material Library | Cloud-based material library keeps resin profiles up to date |
| Wi-Fi Connectivity | Supports wireless firmware and profile updates |
| OLED Screen + Control Knob | Provides simple, intuitive operation |
| Application | Suitable With FabCure 2 |
| Dental Models | Yes |
| Orthodontic Models | Yes |
| Surgical Guides | Yes |
| Splints / Night Guards | Yes |
| Denture Applications | Yes |
| Crowns & Bridges | Yes, depending on resin workflow |
| Temporary Restorations | Yes, depending on resin workflow |
| Gingiva Masks | Yes, depending on material |
| Castable Patterns | Yes, depending on resin requirements |
| General Resin Post-Curing | Yes |

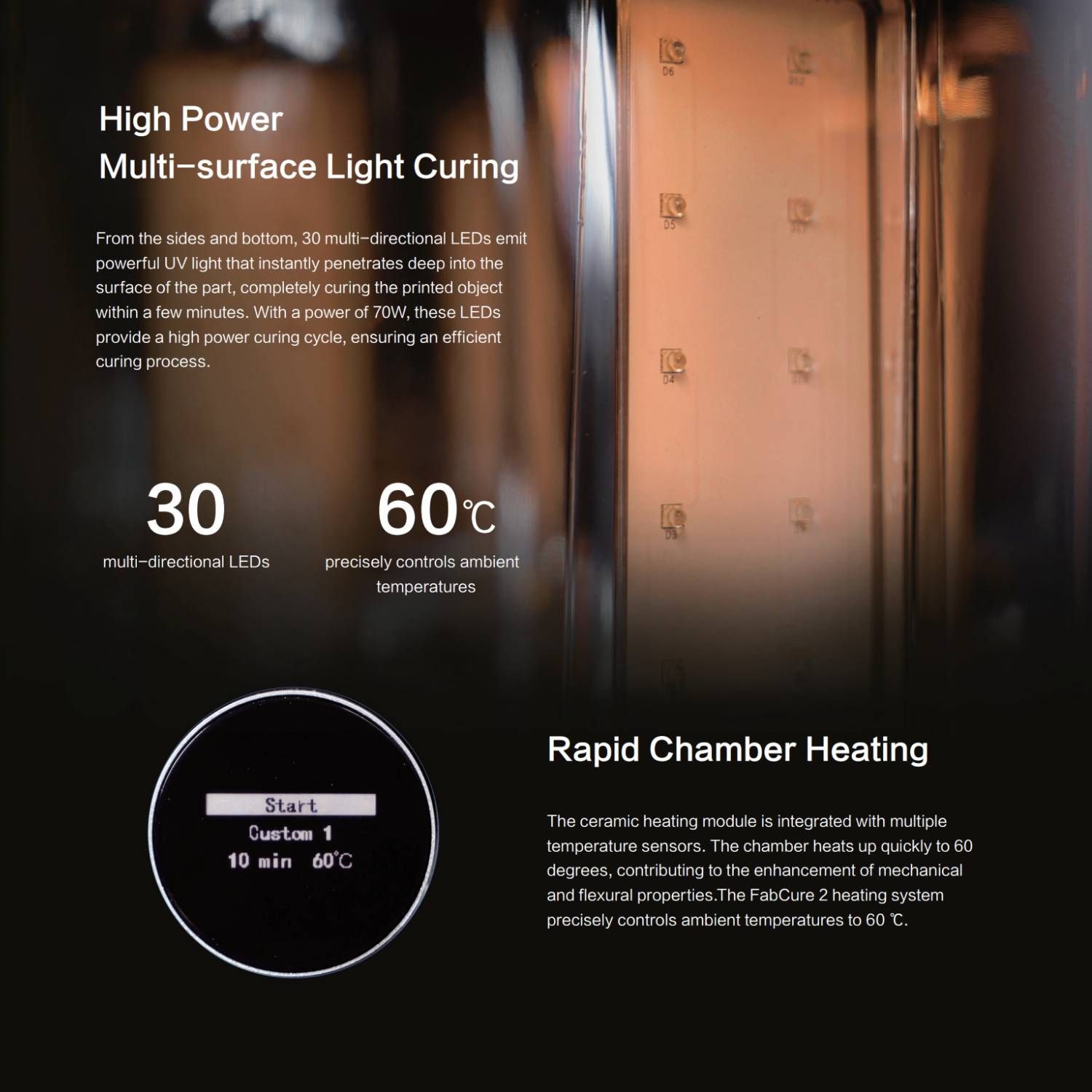

FabCure 2 is designed to deliver powerful and consistent UV exposure from multiple directions. Its 30 multi-directional LEDs are positioned to project UV light from the sides and bottom of the chamber, helping ensure that dental prints receive more uniform exposure during the curing cycle.
This is especially useful for dental parts with detailed surfaces, undercuts, anatomical features, or complex shapes where uneven curing can affect final performance.
Proper curing is not only about light exposure. Temperature also plays an important role in helping resin materials reach their intended mechanical properties. FabCure 2 uses a ceramic heating module and multiple temperature sensors to heat the chamber quickly and regulate the curing environment up to 60°C.
This controlled heating helps improve consistency, strength, and flexural performance in compatible resin workflows.

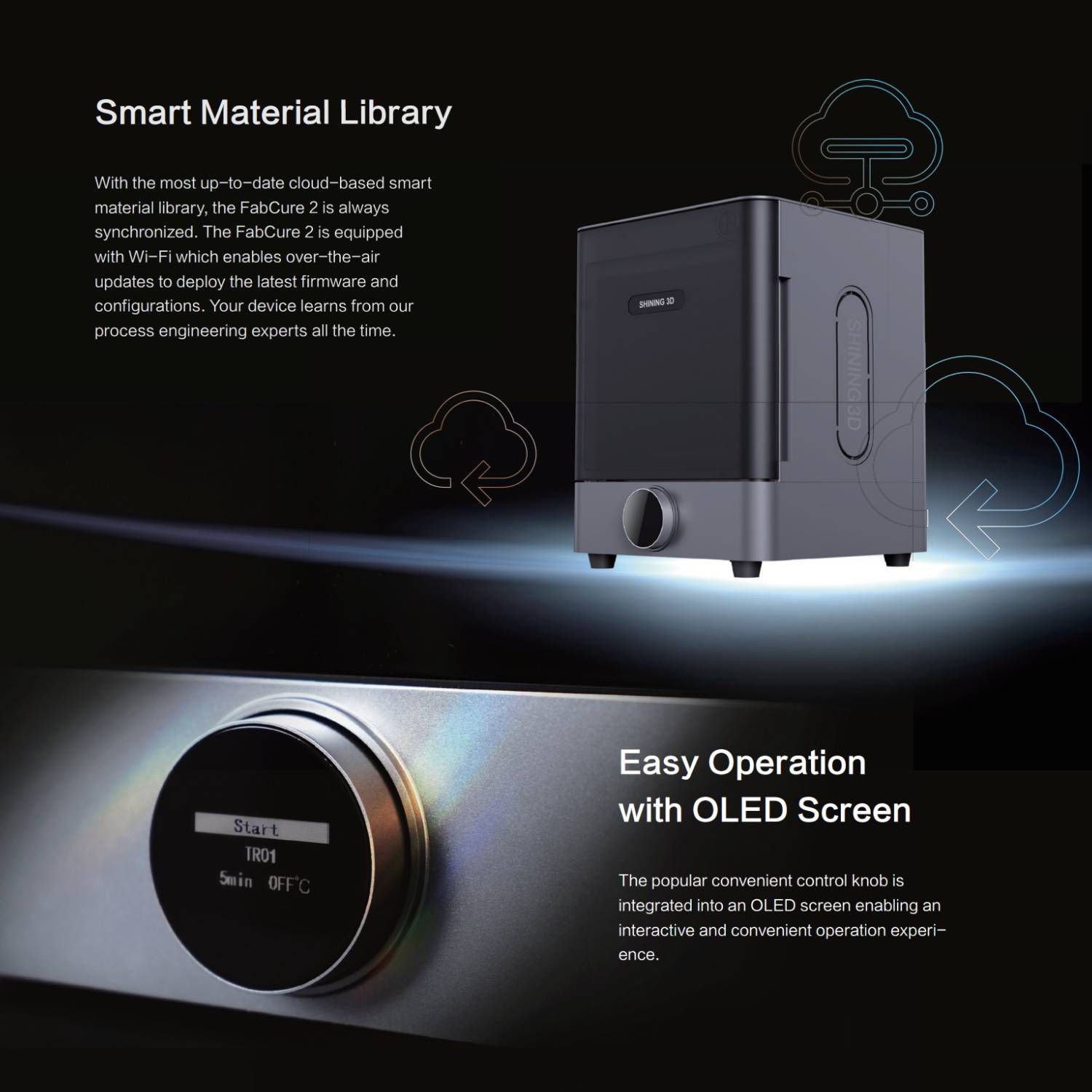

FabCure 2 includes a cloud-based smart material library that keeps curing profiles and configurations up to date. Through Wi-Fi connectivity, the device can receive over-the-air updates for firmware and resin parameters, helping users stay aligned with the latest recommendations from SHINING 3D’s process engineering team.
This makes the workflow easier for clinics and labs because users can rely on preset profiles for SHINING 3D resins while still having the flexibility to customize curing settings when needed.
FabCure 2 is designed for simple daily use. The integrated OLED screen and control knob provide a clear and practical interface for selecting curing programs, adjusting settings, and starting curing cycles.
This makes it suitable for busy dental labs and clinics that need a reliable post-curing unit without adding unnecessary workflow complexity.
The SHINING 3D FabCure 2 is an ideal post-curing solution for dental professionals who want consistent curing quality, efficient operation, and material-specific curing control. It is especially valuable for clinics and laboratories using SHINING 3D printers and dental resins, but it also supports custom and third-party curing workflows.
By combining multi-directional UV light, controlled heating, preset resin profiles, and wireless updates, FabCure 2 helps improve the reliability of the post-processing stage and supports better final material performance for printed dental parts.
