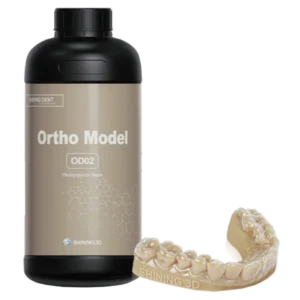

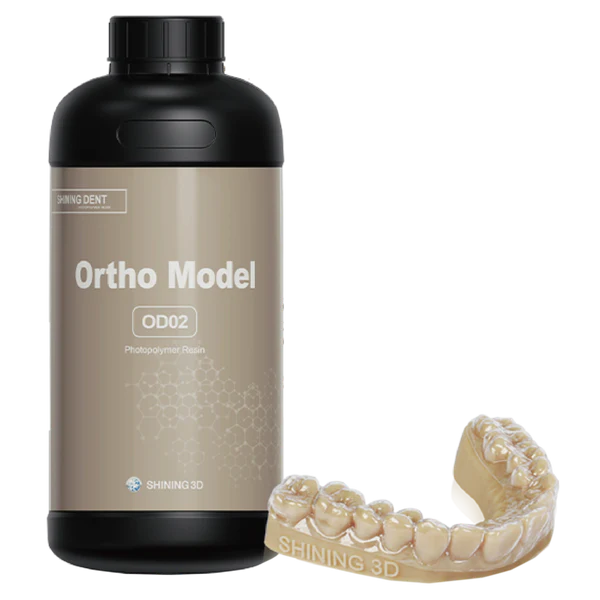

SHINING DENT Ortho Model Resin OD02

Orthodontic model resin for aligner and thermoforming workflows.
Heat-resistant formulation helps maintain model accuracy during film pressing.
High hardness supports repeated handling and wear resistance.

No online checkout. Our support team helps you with current price, availability, promotion details, and product guidance before purchase.

Warranty & Build Quality

Fast Customer Support

Secure Payment Checkout

Price available on request.

Prices and promotions may vary based on availability, brand offers, product configuration, and order conditions. Contact our WhatsApp support to receive the current price, availability status, and promotion details.

Specification	Details
Product name	SHINING DENT Ortho Model Resin OD02
Product code	OD02
Material type	Heat-resistant orthodontic model photopolymer resin
Primary applications	Orthodontic models, aligner models, retainer model workflows
Final-use status	Laboratory model material; not a final intraoral appliance
Color	Beige / stone-like orthodontic model shade
Bottle size	1 kg
Typical output	Approx. 30–32 models per 1 kg
AccuFab-F1 print time	Approx. 16 min
Post-cure profile	FabCure N2: 7 min at 50°C
Key properties	Heat resistance, high hardness, high detail accuracy

Physical Properties – Liquid Status

Color Yellowish-brown
Viscosity @25℃ | cps 322
Wavelength 405nm

Mechanical Properties – Post Cured Parts

Property	Value	Test Method
Hardness	Shore D Value: 86	ISO 868
Tensile Modulus	MPa Value: 2477	ISO 527
Tensile Strength	MPa Value: 55	ISO 527
Elongation at Break	% Value: 3.6	ISO 527
Flexural Modulus	MPa Value: 3217	ISO 178
Flexural Strength	MPa Value: 108	ISO 178
Cleaning Time with 95% Ethanol	Ultrasonic bath: 60 + 10 secs
Recommended Curing Time	Fabcure 2: 20 mins @ 60˚C

SHINING DENT Ortho Model Resin OD02 is designed for printing orthodontic models used in aligner and retainer workflows. Its heat resistance helps printed models remain stable during thermoforming, supporting reliable adaptation of orthodontic sheets.

OD02 is intended for producing accurate orthodontic working models, not for printing the aligner itself. It is suitable for labs that need stable, durable, and detailed models for vacuum forming or pressure forming.
