3,450.00$

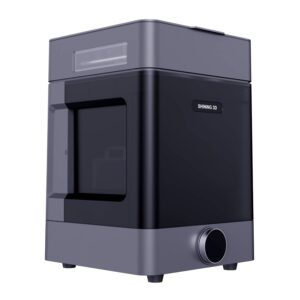

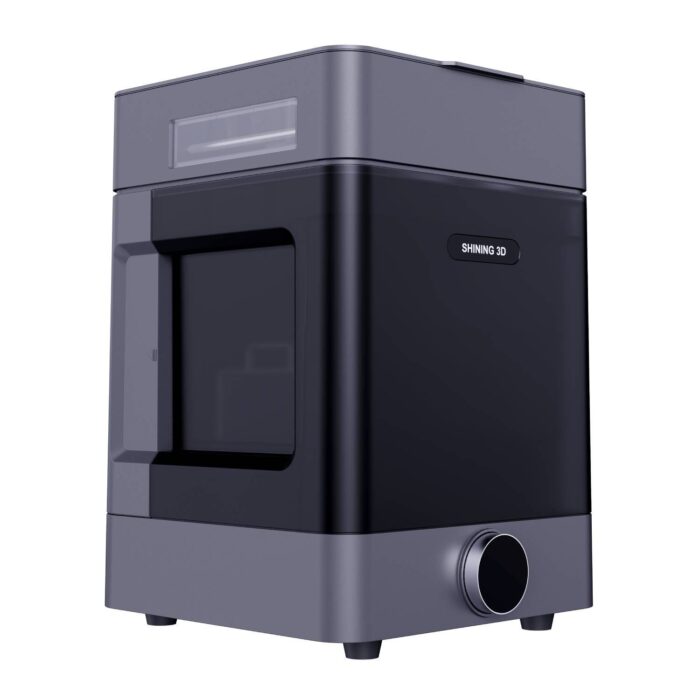

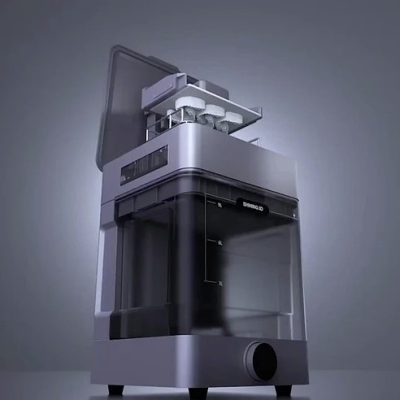

FabWash: The Ultimate Automated Post-Processing System
FabWash is the first fully automated, multi-stage system for part release, washing, and drying, designed to meet the demands of modern dental 3D printing with ease of use, consistency, speed, and cleanliness.
Ideal for dental professionals utilizing 3D printing, FabWash ensures a seamless workflow and is compatible with any printer. Its user-friendly design requires minimal training, making it incredibly simple to operate. With an ultra-fast cycle, it perfectly complements the AccuFab 3D printing ecosystem—one of the most efficient and automated dental 3D printing solutions available.
The Shining 3D FabWash is engineered for instant part release, eliminating the need for traditional removal tools and reducing the risk of print damage.
Additionally, FabWash features Wi-Fi connectivity, enabling seamless over-the-air updates to keep the firmware and material library up to date with the latest advancements.

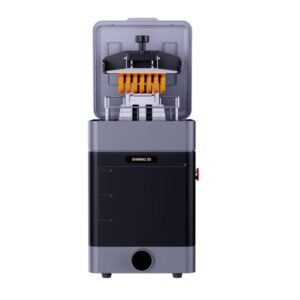

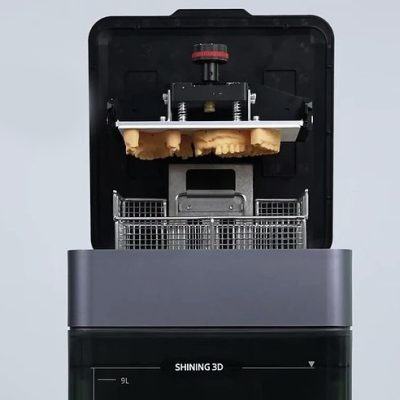

FabWash is designed with pre-set programs for each material, featuring an automated process that releases parts, washes, and dries them. Once finished, it automatically lifts the parts and builds the platform out of the solvent. The parts and platform are ready whenever you are.
| Technical Specifications | Details |
|---|---|
| Printer Compatibility | AccuFab-D1s, AccuFab-L4D/L4K |
| Product Weight & Dimensions | 15KG (around 33LBS) 34*30.3*45 cm Height when open: 75 cm |
| Bucket Volume | 9.5L |
| Maximum Part Size | 199*124*180 mm |
| Suggested Operating Environment | 10~30°C / 30%~70%RH |
| Suggested Transportation Environment | -10°C~70°C |

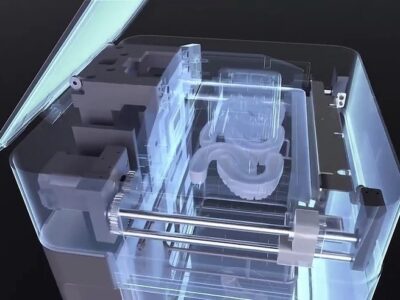

| Agitation Method | Magnetically coupled impeller |
| Include Accessories | Wash Bucket / Wash Basket / Scraper / Brush The adapter / Quick Guide |
| Power Requirements | 100~240 V / 2.0A 50/60 Hz 24V / 150 W |
| Compatible Solvent | > 75% alcohol, IPA, Water |
| Connectivity | Wi-Fi |
| User Controls | 1.54 inch OLED & Rotary knob |
| Safety Sensors | Automatic start/stop sensors; Build platform detection sensor Solvent bucket detection sensor; Safety pressure sensor Emergency stop switch |
| Product Features | Automatic part release function; Automatic predefined wash/dry function User programmable wash/dry option |
FabWash: The Ultimate Automated Post-Processing System
FabWash is the first fully automated, multi-stage system for part release, washing, and drying, designed to meet the demands of modern dental 3D printing with ease of use, consistency, speed, and cleanliness.
Ideal for dental professionals utilizing 3D printing, FabWash ensures a seamless workflow and is compatible with any printer. Its user-friendly design requires minimal training, making it incredibly simple to operate. With an ultra-fast cycle, it perfectly complements the AccuFab 3D printing ecosystem—one of the most efficient and automated dental 3D printing solutions available.
The Shining 3D FabWash is engineered for instant part release, eliminating the need for traditional removal tools and reducing the risk of print damage.
Additionally, FabWash features Wi-Fi connectivity, enabling seamless over-the-air updates to keep the firmware and material library up to date with the latest advancements.
FabWash is designed with pre-set programs for each material, featuring an automated process that releases parts, washes, and dries them. Once finished, it automatically lifts the parts and builds the platform out of the solvent. The parts and platform are ready whenever you are.
| Technical Specifications | Details |
|---|---|
| Printer Compatibility | AccuFab-D1s, AccuFab-L4D/L4K |
| Product Weight & Dimensions | 15KG (around 33LBS) 34*30.3*45 cm Height when open: 75 cm |
| Bucket Volume | 9.5L |
| Maximum Part Size | 199*124*180 mm |
| Suggested Operating Environment | 10~30°C / 30%~70%RH |
| Suggested Transportation Environment | -10°C~70°C |
| Agitation Method | Magnetically coupled impeller |
| Include Accessories | Wash Bucket / Wash Basket / Scraper / Brush The adapter / Quick Guide |
| Power Requirements | 100~240 V / 2.0A 50/60 Hz 24V / 150 W |
| Compatible Solvent | > 75% alcohol, IPA, Water |
| Connectivity | Wi-Fi |
| User Controls | 1.54 inch OLED & Rotary knob |
| Safety Sensors | Automatic start/stop sensors; Build platform detection sensor Solvent bucket detection sensor; Safety pressure sensor Emergency stop switch |
| Product Features | Automatic part release function; Automatic predefined wash/dry function User programmable wash/dry option |
