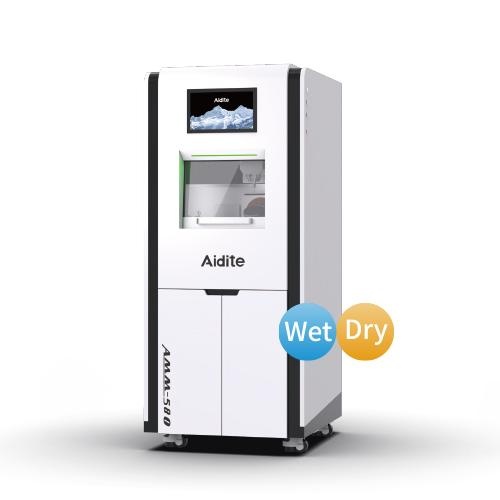

The AMM-580 Metal Milling Machine is a versatile and durable milling machine designed to handle today’s most demanding implant restorations. With its stable structure and precise machining, it can efficiently process implant bars, screw-retained bridges, custom abutments, and more.
High precision spindle
Maximum speed 60,00rpm; Shank diameter 6mm
Tool magazine
25 tool magazines design; Various implants processing types
Tool life management
Real-time recording of tool usage time; Intelligent prompt tool replacement
Aviation cast aluminum platform
Stable structure ; Smooth operation
Large angle machining
Rotation angle A-axis: 360° B-axis: -110°, +30° ; Fine processing of bridge undercut
High precision servo system
Higher machining accuracy; Stable precision control
Machining Parameters
| Parameter | Value |
|---|---|
| Number of Axis | Five Axis |
| Processing Type | Crown/Bridge, Implant Bar, Screw-Retained Bridge, Abutment, Locator |
| Milling Mode | Wet/Dry |
| Millable Material | Titanium Disc, Cobalt Chrome, Premill, Glass Ceramic, PEEK, PMMA |
| Material Thickness | 10-25 mm |
| Fixture | 98 mm/Block |
| Repeat Positioning Accuracy | ±5 μm |
| Linear Drive System | High Precision Linear Guide Slide Block |
| Rotary Drive System | High Precision Reducer |
| External Dimensions | 750 x 885 x 1663 mm |
| Weight | 500 KG |
| Tool Changer | 25 |
| Stroke | X, Y, Z Axis: 320 x 120 x 130 mm; A-axis: 360°; B-axis: -110°, +30° |
| Spindle | Power: 2.5 kW, Cooling Method: Water Cooling, Speed: 60000 rpm |
| Chuck Size | 6 mm |
| Input | Power Supply: AC 220V 50Hz 60Hz, Power: 3.8 kW, Air Pressure: 0.6-0.8 MPa |
