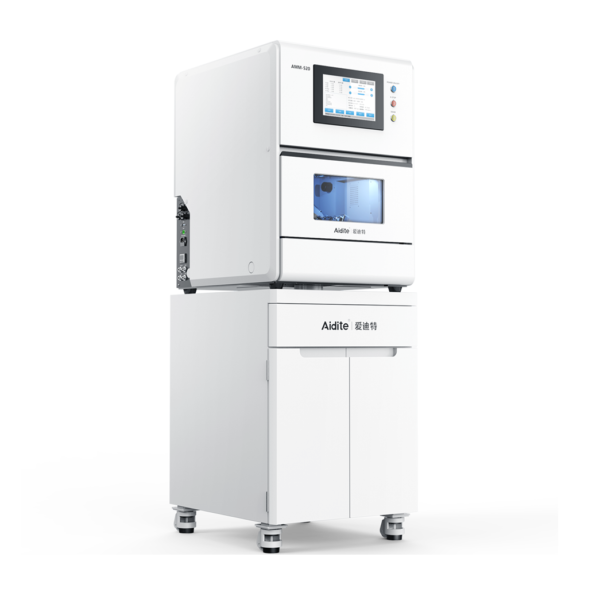

The AMM-520 is a versatile milling machine capable of both wet and dry processing. Its sturdy design and adaptable fixtures make it suitable for a wide range of manufacturing tasks.
Machine Specifications
| Parameter | Description |
|---|---|
| Number of axes | 5 Simultaneous Processing |
| Milling mode | Wet and dry |
| Millable material | Zirconia, PMMA, HPP, PEEK, Titanium disc, glass ceramic, denture, premill |
| Material thickness | 10-35mm (round disc) |
| Accessories | Work table, water cooler, water tank |
| Repeat positioning accuracy | ±5µm |
| Linear drive system | Linear guide and lead screw |
| Rotary drive system | Harmonic reducer |
| Control system | Embedded CNC system and AC bus servo motor |
| Machine size | 590×730×820 (mm) |
| Machine weight | 180kg |
| Tool changer | 10 |
| Processing time | Single crown ≤15min, Premill ≤20min, Glass ceramic ≤20min, Full denture ≤3h |
| Stroke | XYZ axis: 180x110x100 (mm), A-axis: ±361°, B-axis: -115°, +30° |
Spindle
| Parameter | Description |
|---|---|
| Power | AC 1500W |
| Cooling | Water cooling |
| Speed | 60000 rpm |
| Chuck size | Φ6 mm |
Input
| Parameter | Description |
|---|---|
| Power supply | Single-phase AC 220V 50/60Hz |
| Power | 2.2KW 10A |
| Air pressure | 6Bar |
Processing type
Denture, bitesplingt, snap on smile, surgical guide, partial framework, crown and bridge, veneer, inlay, post and core, screw-retained bridge (a separate nesting moudle needs to be added for implant case), custom abutment
