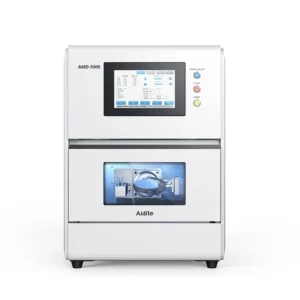

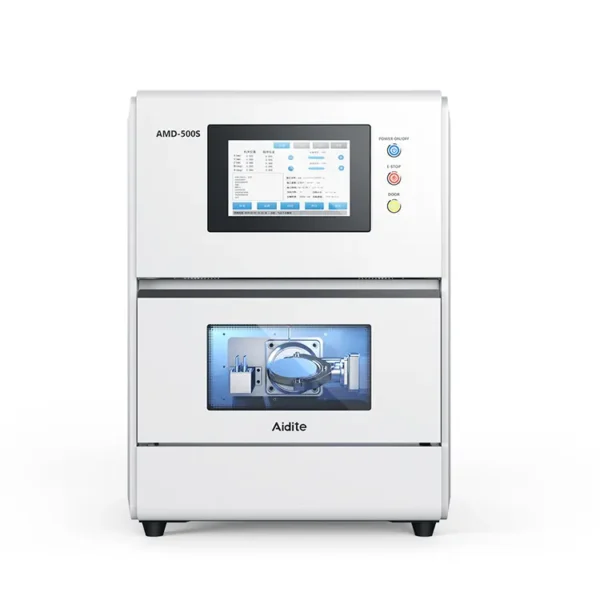

The Aidite AMD-500S is a high-precision five-axis dry milling machine designed for efficient and reliable operation. Its advanced features, including 90-degree vertical processing, intelligent maintenance reminders, safety door protection, and a sealed dust-proof design, make it the ideal solution for your milling needs.
Parameter
| Parameter | Value |
|---|---|
| Platform | Aviation Aluminum Casting Structure |
| Dimensions and weight | 590×730×820 (mm) |
| Weight | 180 Kg |
| Number of axes | 5-axis Linkage Zirconia Milling Machine |
| Processing methods | Dry milling |
| Processing material | Zirconia, PMMA, Wax, and Other Dry-milling Dental Soft Materials |
| Processing material thickness | 10-30 mm |
| Repeatability | ± 5 μm |
| Linear drive system | Linear Guide and Screw |
| Rotary drive system | Harmonic Reducer |
| Control System | Embedded CNC System and AC Bus Servo Motor |
| Automatic tool change quantity | 10 Pieces |
| 90° buccal processing | Support |
| Safety door | Support |
| Power supply | Single-phase AC 220V 50/60Hz Voltage |
| Power consumption | 1.6 kW 8 A |
| Air Pressure | ≥6 Bar |
Spindle Specifications
| Parameter | Value |
|---|---|
| Power Consumption | AC 1500 W |
| Cooling Method | Water Cooling |
| Speed | 60000 rpm |
| Chuck Size | Φ4 mm |
Machining Angle Specifications
| Parameter | Value |
|---|---|
| XYZ Axis | 180 x 110 x 100 (mm) |
| BA Axis | B: ±30° -90°; A: ±360° |
Machining type
Single Crown, Bridges, Veneers, Inlays, Abutments, Screw-retained Crowns, Screw-retained Bridges (Implantation Needs To Add A Separate Nesting Module)
